Rotary Indexing Table

The Rotary Stage Series offers an unparalleled combination of good accuracy and high load capacity. These rotary stages utilize a precision worm gear with the worm “flexed” against the gear to ensure a proper mesh. This feature provides high repeatability with very smooth operation. Additionally, the rotary stages incorporate an oversized preloaded cross roller bearing, offering exceptional stiffness and load capacity.


Applications
  • All type of Indexing Applications
  • Pad Printing Machine
  • Welding Machine
  • Packaging Machine
  • X Ray Scanning

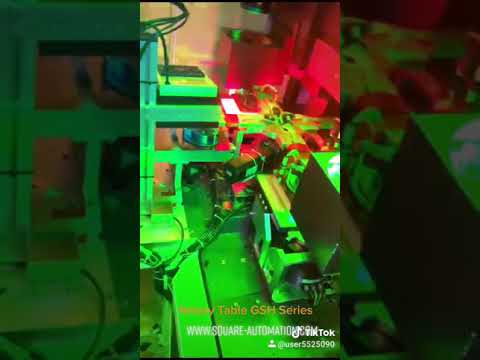

Cam Indexing Drive

Cam Indexing Drive
  • Cam Indexing Drive
  • Cam Indexing Drive
  • Cam Indexing Drive
Get Best Quote
Approx. Price: Rs 50,000 / PieceGet Latest Price

Product Details:

Minimum Order Quantity1 Piece
Usage/ApplicationIndustrial
MaterialMS
Dimension/SizeIndexing Segments Options for DS/DF Model: 2/3/4/5/6/8/10/12/16/20/24/30/32/36/40/48
Max Torque4150
Weight20

1. Introduction

A mechanism for intermittent motion, which is featured with large transmission torque, high indexing accuracy, stable operation, compact structure, self-locking during positioning, small size, low noise, high speed performance and long life.

2. What is the Product Features

Use rolling contact for smooth indexing and longer life. It is an ideal product to replace traditional mechanisms such as groove wheel mechanism, ratchet mechanism, incomplete gear mechanism and pneumatic control mechanism.

• Precision Driving Mechanism

At the moment of indexing or stop, the follower is secured in place within the prescribed position, thereby eliminating the need for any locking elements.

• High Speed Performance

Backlash is completely eliminated by applying a preload to the tapered-rib of the precision machined cam and the cam follower, resulting in reliable high speed operation. Fully controlled acceleration minimizes shock due to load or vibration.

• Smooth Transmission

As the turret is designed to rotate continuously in any position (regardless of angle, speed and/or acceleration) the driving transmission is smooth and free of vibration and noise.

• Simple Mechanism



Composed of only a cam and turret; no unnecessary parts, while providing any intermittent motion needed.




Request
Callback


Additional Information:

  • Item Code: 70DF
  • Production Capacity: 100
  • Delivery Time: 4 weeks
  • Packaging Details: Wooden Box
